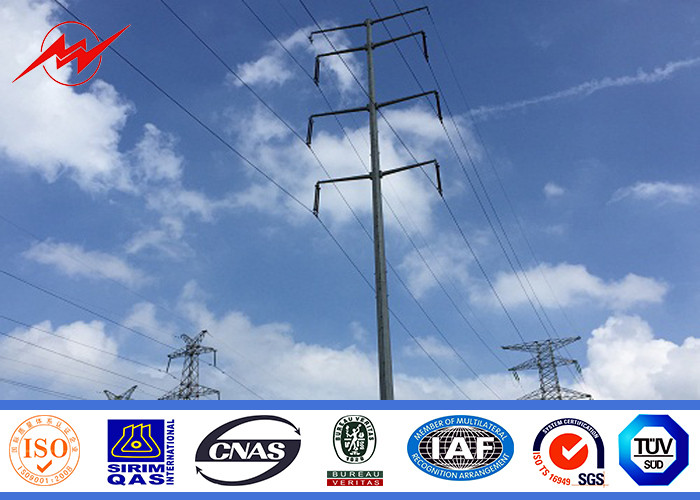

Bitumen Telescoping Electrical Power Pole For Distribution Line

Chiny Bitumen Telescoping Electrical Power Pole For Distribution Line dostawca
Bitumen Telescoping Electrical Power Pole For Distribution Line dostawca Bitumen Telescoping Electrical Power Pole For Distribution Line dostawca Bitumen Telescoping Electrical Power Pole For Distribution Line dostawca Bitumen Telescoping Electrical Power Pole For Distribution Line dostawca

Duży Obraz :  Bitumen Telescoping Electrical Power Pole For Distribution Line

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: MilkyWay
Orzecznictwo: ISO9001/BV/SGS
Model Number: Electric Telescoping Power Pole

Zapłata:

Minimum Order Quantity: 1 pcs
Cena: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Szczegółowy opis produktu
Product Name: Electric Telescoping Power Pole Application: Distribution Line
Material: SteelQ235,Q345 Shape: Octagonal, Polygonal or Tapered round
Wind load resistance: 160Km/h Thickness: 1mm-36mm

Bitumen Telescoping Electrical Power Pole For Distribution Line





 Specification:



Type

Octagonal HDG 20m electricity pole for power transimission

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

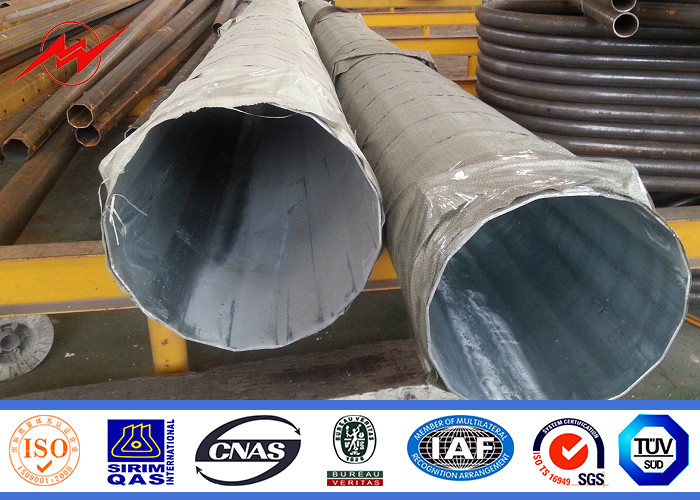

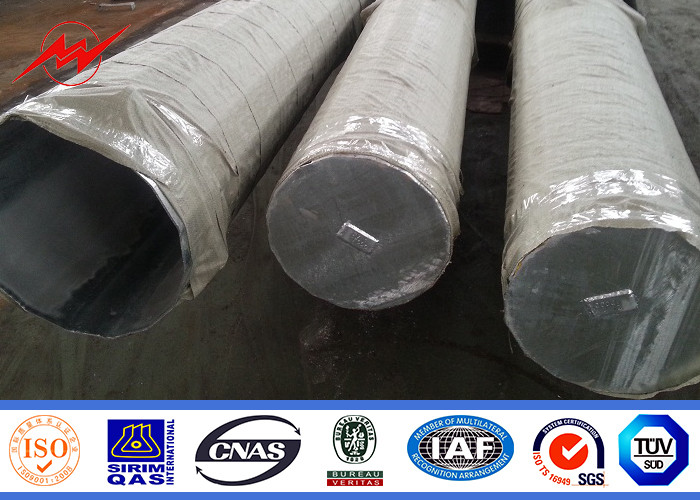

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Steel


 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 - Yield Strength=355N/mm2
 - Toughness remains the same under 20 degrees below zero.
 - Galvanization is in accordance with NFA35503 Standard Class 1.

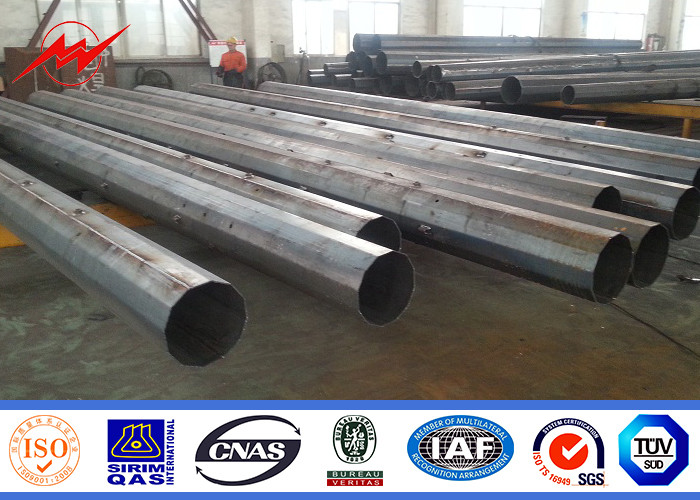

 Bitumen Telescoping Electrical Power Pole For Distribution Line





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 Bitumen Telescoping Electrical Power Pole For Distribution Line



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 Bitumen Telescoping Electrical Power Pole For Distribution Line

 Standard

 Octagonal tapered column
 Certified by SIRIM QAS INTERNATIONAL.
 Approved by JABATAN KERJA RAYA MALAYSIA.
 Conforms to Standard:
 Pole design : BS EN 40
 Material : BS EN 10025 S275 / JIS G3101 SS400
 Welding : BS 5135
 Galvanizing : BS 729 / ISO 1461 ASTM A 123

 Bitumen Telescoping Electrical Power Pole For Distribution Line



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
