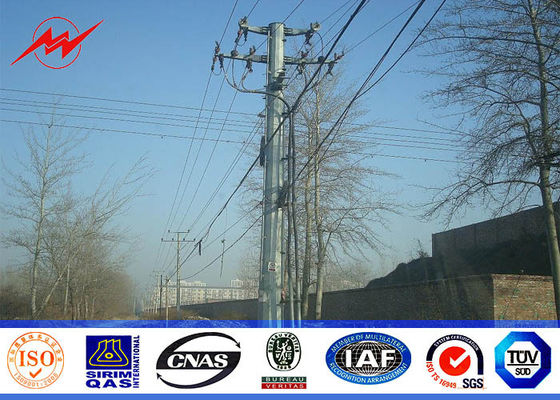

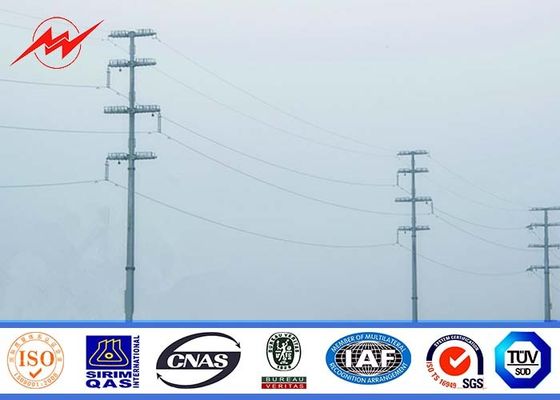

12sides 25ft 69kv Steel Utility Pole for Power Distribution structures with climbing rung
Quick Infromation
Milky Way Pre-Engineered steel utility poles offer a light duty solution to satisfy utilities desiring an alternative to wood poles. Milky Way’s line of Pre-Engineered poles are lighter than typical
wooden and concrete poles and provide easy installation and low maintenance. Milky Way offers Pre-Engineered poles for either direct embed or flange installations. The poles come standard with a hot-dip galvanized coating, but can also be painted or fabricated with weathering steel.
Technical Data Sheet
| Distribution Range | ||||
|---|---|---|---|---|
| Product Code | Length | ULS | Pole Dimension | |
| Top | Base | |||
| 11M 13.5KN | 11M | 13.5kN | 160 | 328 |
| 12.5M 12KN | 12.5M | 12KN | 160 | 340 |
| 12.5M 16KN | 12.5M | 16KN | 180 | 380 |
| 12.5M 24KN | 12.5M | 24KN | 200 | 420 |
| 14M 16KN | 14M | 16KN | 190 | 402 |
| 14M 24KN | 14M | 24KN | 210 | 465 |
| 15.5M 12KN | 15.5M | 12KN | 160 | 405 |
| 15.5M 24KN | 15.5M | 24KN | 210 | 500 |
| Note:Tapered 12-sided, direct buried Pole deflection less than 5% of pole height at 50% ULS |
||||
Here are some reasons why they made the switch from the wooden pole to Steel Utility Pole:
Fabricated with uniform dimensions
Easy to install
Durable
Easy to maintain
Lower in life cycle costs
A solution to EPA regulations and deforestation issues
Superior in strength
Impervious to insects and rot
Free of toxic chemical treatments or hazardous waste concerns
100% recyclable
More Products
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other
Company Ability
• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)
• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines
• Straightening machines
• CNC Punching machines
• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm
• Capacity to produce poles in heights from 3m to greater than 75m
• Capable of producing poles for any requirement from small distribution poles to large transmission poles

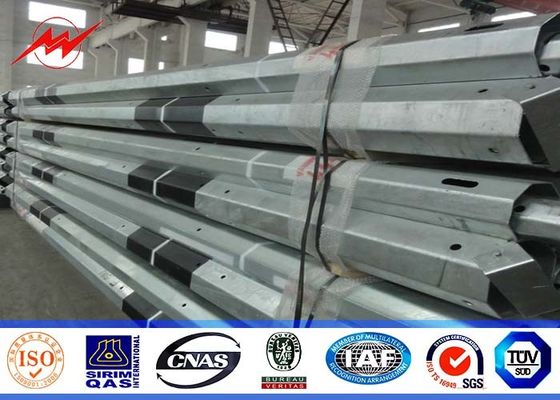

Production On Site
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
