Electric Transmission Power Round 11M Metal Utility Poles 3mm Steel Plate

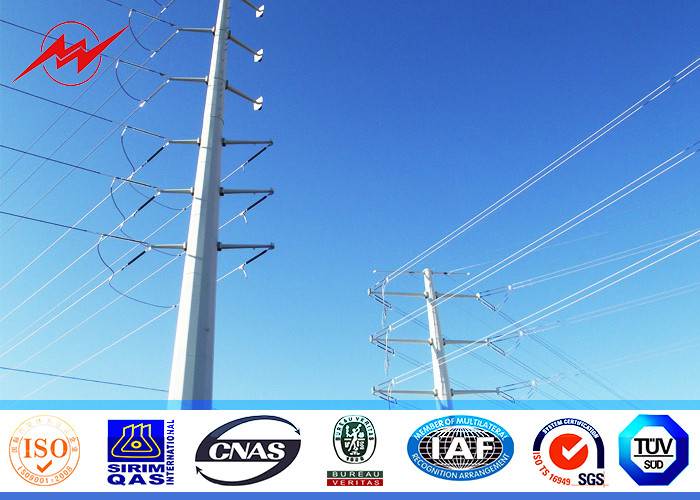

Duży Obraz : Electric Transmission Power Round 11M Metal Utility Poles 3mm Steel Plate

Szczegóły Produktu:

Place of Origin:	Yixing,Jiangsu,China
Nazwa handlowa:	Milky Way
Orzecznictwo:	ISO,BV
Model Number:	Steel Tubular Pole

Zapłata:

Minimum Order Quantity:	1 Poles
Cena:	Negotation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	300pcs per day

Kontakt

Szczegółowy opis produktu

Height:	11M	Pole material:	steel plate
Minimum yield strength:	460mpa	Usage:	electric power transmission line
Connection Type:	burial or flange type	Shape:	Conical
Galvanization standard:	ASTM A 123
High Light:	metal light pole , commercial light poles

Round 11M Steel Tubular Pole Gr50 material 3mm steel plate for electric power transmission line

Application:

Tapered Tubular Substation Structures

Steel Substation Structures

Custom Substation Designs

Closed Section Tubes

I-Beam Structures

Lattice Structures

Steel Structures with Higher Translational Stiffness

Low Profile Aesthetically Pleasing Structures

Higher Terminal-Stop/Take Off Angles

Higher Tension Wires Due to Design

Substation Structures Exceed Wood Pole Standards

Technical Data Sheet

series	Outside Diametar	Wall Thicness
mm	Min.	mm /SWG
15 L	21.3	2
M		2.6
H		3.2
20 L	26.9	2.3
M		2.6
H		3.2
25 L	33.7	2.6
M		3.2
H		4
32 L	42.4	2.6
M		3.2
H		4
40 L	48.3	2.9
M		3.2
H		4
50 L	60.3	2.9
M		3.6
H		4.5
65 L	76.1	3.2
M		3.6
H		4.5
80 L	88.9	3.2
M		4
H		4.8
90 L	101.6	3.6
M		4
H		4.8
100 L	114.3	3.6
M		4.5
H		5.4
110 L	127	4.5
M		4.8
H		5.4
125 L	139.7	4.5
M		4.8
H		5.4
135 L	152.4	4.5
M		4.8
H		5.4
150 L	165.1	4.5
M		4.8
H		5.4
150 L	168.3	4.5
M		4.8
H1		5.4
H2		6.3

Pole Design

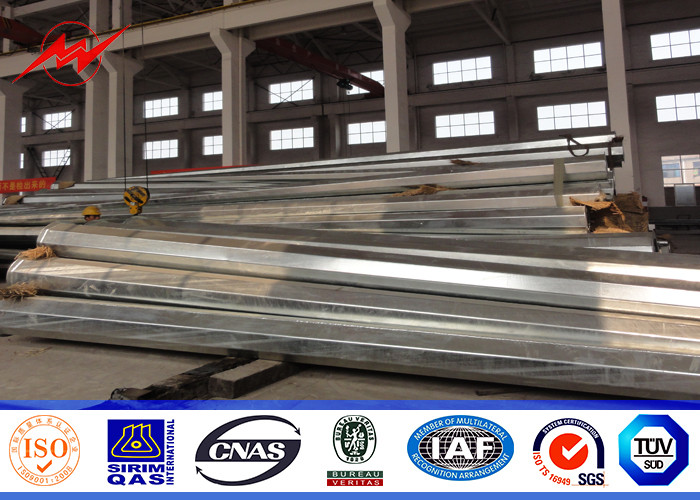

Electric Transmission Power Round 11M Metal Utility Poles 3mm Steel Plate 0

Standard Accessory

-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder

Available Foundation Types

Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson

Here are some reasons why they made the switch from the wooden pole to Steel Utility Pole:

Fabricated with uniform dimensions

Easy to install

Durable

Easy to maintain

Lower in life cycle costs

A solution to EPA regulations and deforestation issues

Superior in strength

Impervious to insects and rot

Free of toxic chemical treatments or hazardous waste concerns

100% recyclable

Tapered Tubular Substation Structures

Steel Substation Structures
Custom Substation Designs
Closed Section Tubes
I-Beam Structures
Lattice Structures
Steel Structures with Higher Translational Stiffness

More Pictures

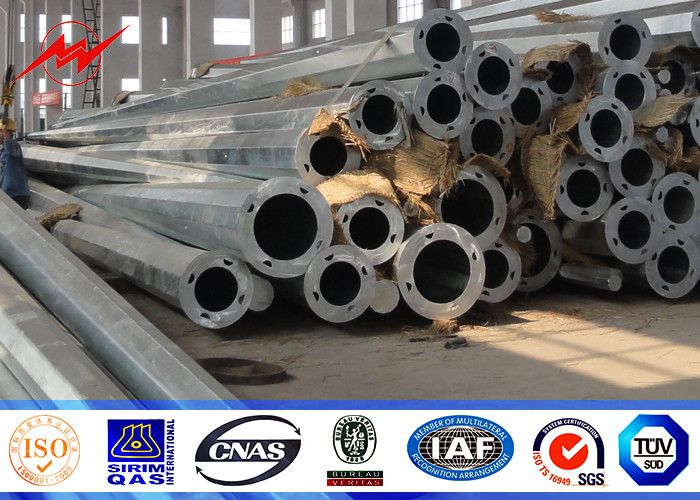

Electric Transmission Power Round 11M Metal Utility Poles 3mm Steel Plate 1

Options:

• The Power Distribution Pole is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The Power Distribution Pole covers Voltage between 10-220KV.

• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.

• Standard Corrosion Protection: hot dip galvanising (above and in-ground)

• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.

• Pre-drilling for removable safety steps is available.

• Cross arms available.

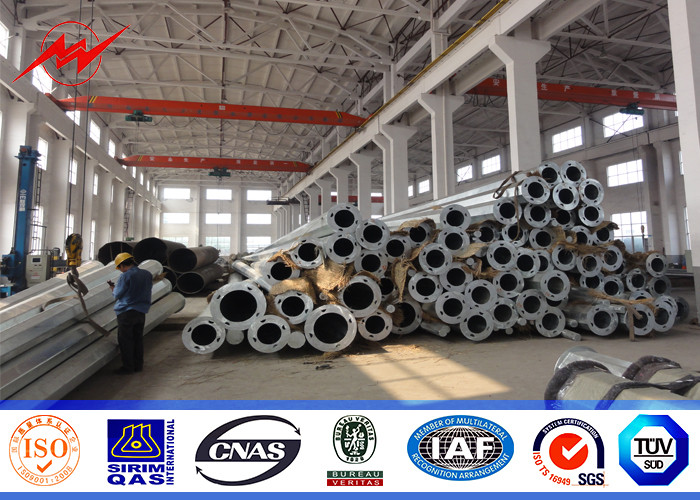

Workshop

Electric Transmission Power Round 11M Metal Utility Poles 3mm Steel Plate 2

Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
