65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej

Chiny 65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej dostawca
65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej dostawca 65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej dostawca 65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej dostawca 65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej dostawca

Duży Obraz :  65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej

Szczegóły Produktu:

Place of Origin: Yixing,Jiangsu,China
Nazwa handlowa: Milky Way
Orzecznictwo: ISO,BV
Model Number: Steel Utility Pole

Zapłata:

Minimum Order Quantity: 1 Poles
Cena: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Kontakt
Szczegółowy opis produktu
Wysokość: 65 stóp Obciążenie projektowe w kg: 300 ~ 1000 kg przyłożone do 50 cm od bieguna
Minimalna granica plastyczności: 345 mpa Sekcje: Trzy sekcje
Wygląd: Rurowy, trójkątny, kątowy, kratowy; Prędkość wiatru: 35m/s
Standard galwanizacji: ASTM A 123
High Light:

metalowe słupy użytkowe

,

słupy elektryczne

,

65-metrowy słup zasilający linii dystrybucyjnej

Three sections 65ft Steel Utility Pole for electric power distbution line with galvanization



Application:



Transmission Applications

Light Duty Steel Poles

Custom Design Transmission Poles

Steel H-Frame Poles



Substation Applications

Dead End Structures

A-Frames and H-Frames

Special Application Structures

Low Side Supports – Buss, Switch, and Other equipment

Static and Shield Wire Poles



Workshop

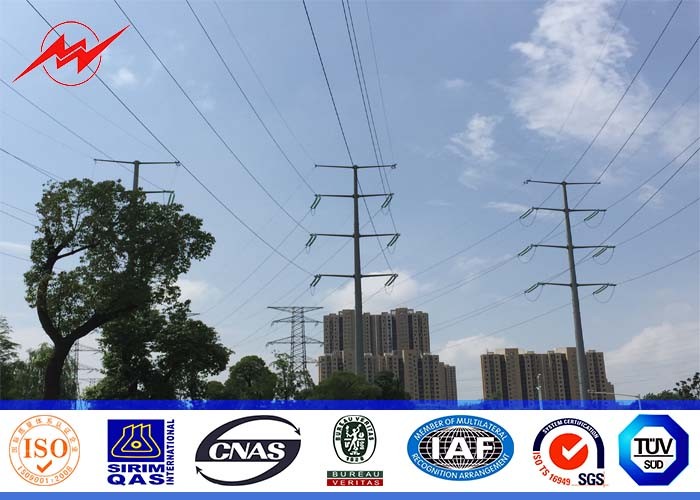

65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej 0





Technical Data Sheet(F=10KN)



Dimension 10m 11m 11.8m 13m 14m 16m 18m
DI(mm) 180 180 180 180 180 180 180
D2(mm) 360 380 400 400 410 445 475
T(mm) 3 3 3 3 3.5 3.75 3.75
h(m) 1.6 1.8 1.9 2.1 2.3 2.6 3

More details and load,feel free to call me.



Available Foundation Types



Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson



Available Finishes



Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating



Welding Process

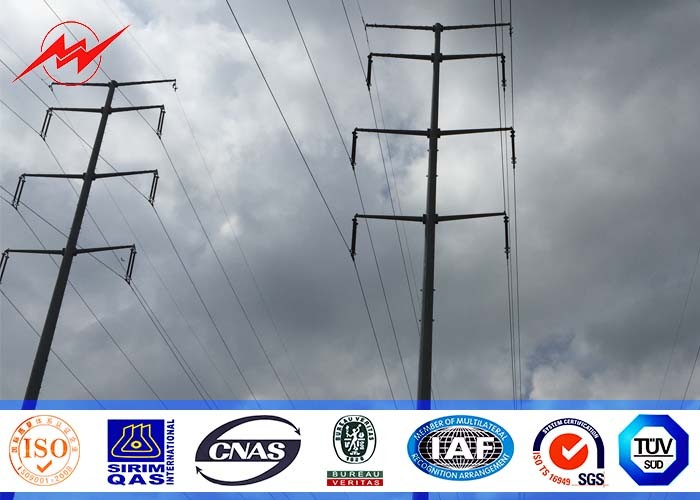

65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej 1







Standard Features of in-ground and base plate mounted



In-Ground Mounted:



12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish



Base Plate Mounted:



12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish

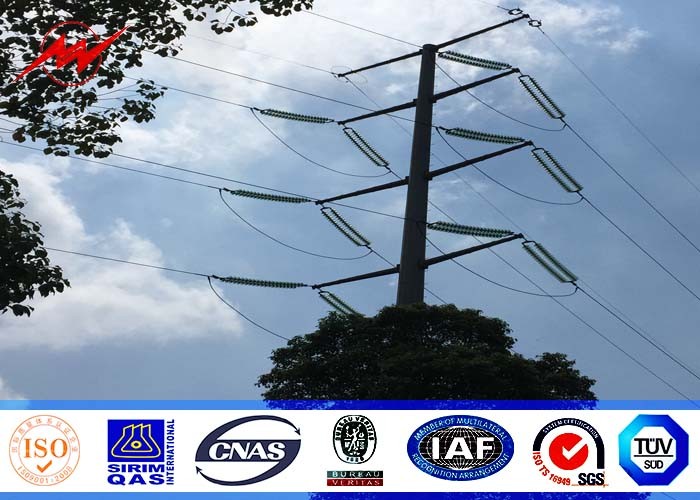

65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej 2



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.



More Pictures:

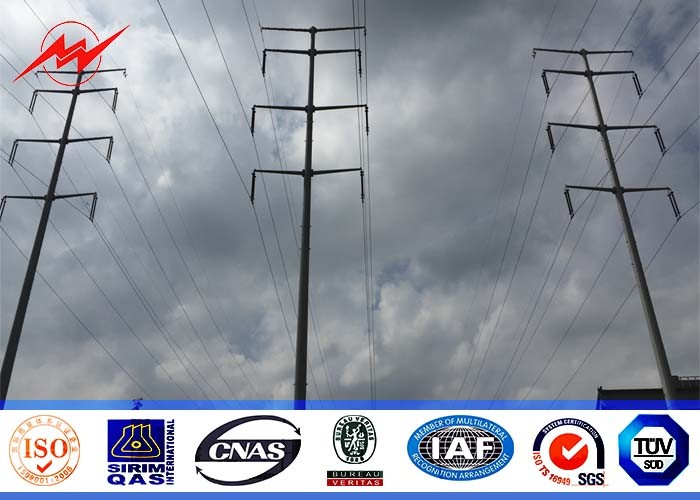

65-metrowy słupek ze stali glavanizowanej do linii destylacyjnej 3





Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
