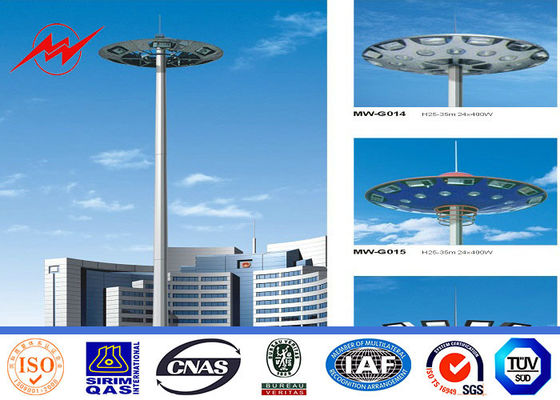

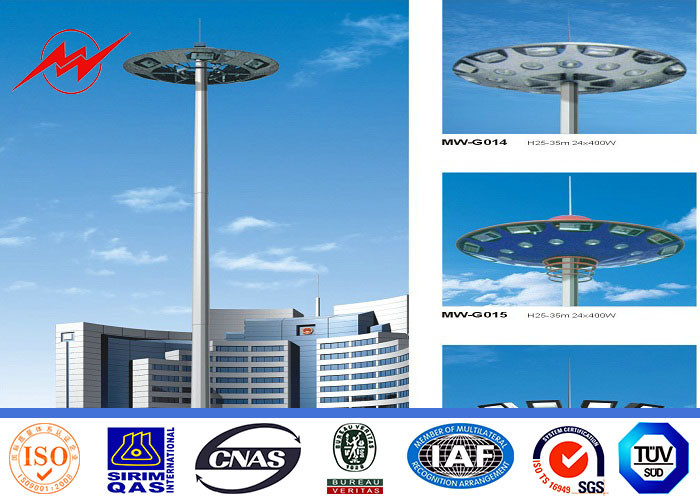

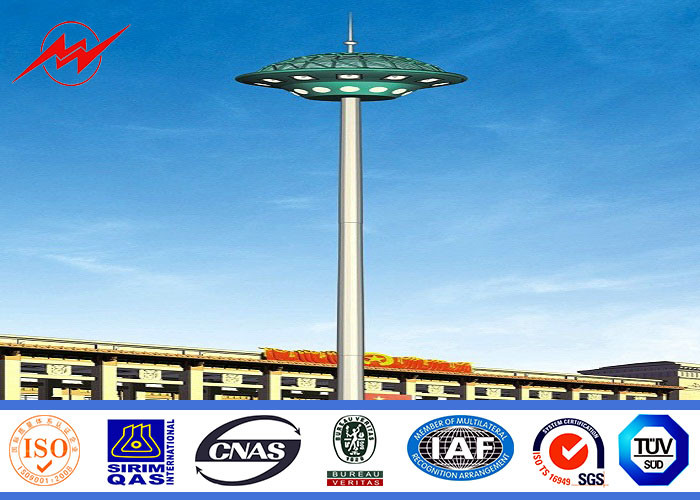

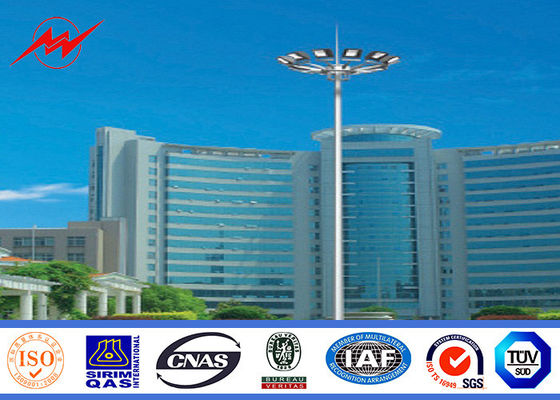

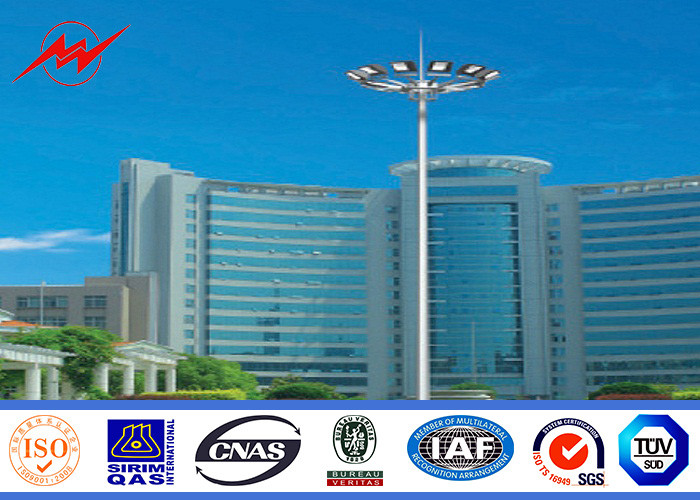

High mast light tower mast galvanized steel tubular pole Lamp poles
Specifications:
|
Mast’s height |
15m to 35m |
|
Shape of mast |
Polygon
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
|

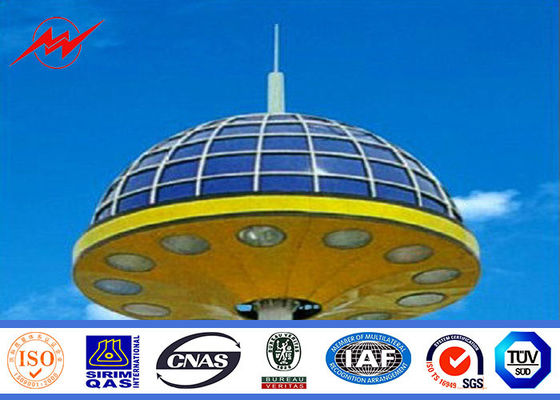

Head frame |
The style according to client's requests and dimension as per customers requirement |
|
Length |
Within 14m once forming without slip joint
|
|
Wall thickness |
4mm to 20mm |
|
Welding |
It has past flaw testing.Internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard of CWB |
|
Jointing |
Slip Joint Jointing of pole with insert mode, innerflange mode, face to face joint mode. |
|
Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
|
Ground mounted |
The length buried underground as per customers requirement. |
|
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.
|
|
Powder coating |
Pure polyester powder painting, color is optional according to RAL Color stardand. |
|
Wind Resistance |
Aganist wind pressure of 160Km/h |
|
Manufacturing |
According to GB/T 1591-1994. |
|
Quality Control |
We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant.
|
|
Certificates |
ISO9001-2008 Audited Supplier |
Material
Usually?Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Feature:

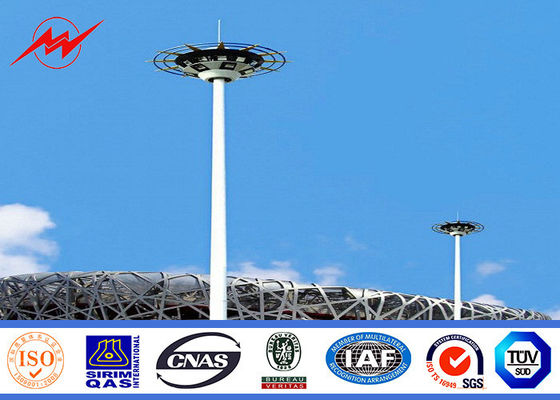

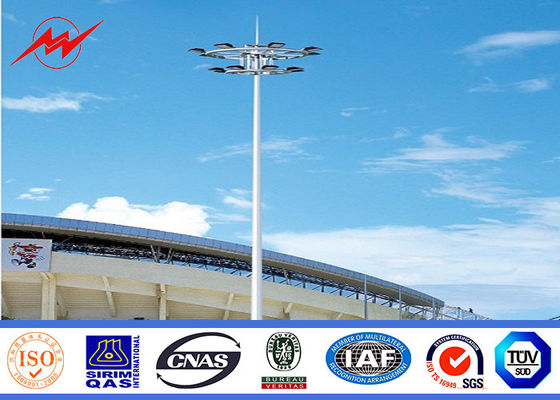

Special designed for stadium to provide high-power, large- area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for i nstallation and maintenance purposes
Light source :400w-1000w sodium light
Installation:
1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2. when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3. control box installed at the poles or the lower part of the poles
Company instruction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
