logo
Dom /Produkty/Słup energii elektrycznej/15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines

100
MOQ
$99-120
Cena £
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Prąd oceniany: 10-200
Napięcie znamionowe: 10-220
Obróbka powierzchniowa: Cynkowanie ogniowe
Tolerancja wymiaru: +- 2%
Norma spawalnicza: AWS D 1.1
Standard galwanizacji: ASTM A 123
Potencjał produkcyjny: 300 sztuk dziennie
Tworzywo: Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Zakres mocy: 10 KV ~ 550 KV
Współczynnik bezpieczeństwa: 8 do przewodzenia drutu, 8 do drutu uziemiającego
Obciążenie projektowe: 300 ~ 1000 kg zastosowanych do 50 cm od górnego bieguna
Prędkość wiatru: 160 km/godzinę (30 m/s)
Minimalna granica plastyczności: 355 MPa
Minimalna wytrzymałość na rozciąganie: 490 MPa
Maksymalna wytrzymałość na rozciąganie: 620 MPa
Podkreślić:

15m Steel Utility Power Pole

,

2.75mm Thickness Steel Utility Power Pole

,

850kg Load Steel Utility Power Pole
Podstawowe informacje
Miejsce pochodzenia: Jiangsu, Chiny
Nazwa handlowa: MilkyWay
Numer modelu: stalowe słupy elektryczne, słup elektryczny
Zapłata
opis produktu
15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
Type Octagonal NGCP 69KV Galvanized electric steel power pole
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Power Rating 10KV ~550KV
Safety Factor 8 for conducting wire, 8 for grounding wire
Design Load 300~1000kg applied to 50cm from top pole
Surface Treatment Hot dip galvanized (ASTM A 123) or color polyester powder coating
Wind Resistance 160 km/hour (30 m/s)
Standards ISO 9001
Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 0
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging
Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 1
Certifications
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 2
Project Examples
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 3 15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 4
Ordering Information
  • Price Terms: EXW, FOB, CFR, CIF
  • MOQ: 1 set for customized orders
  • Payment: 30% deposit by T/T, balance before shipment
  • Delivery: Ready within 10 working days after deposit
  • Warranty: 30 years
  • Surface Treatment: Hot dip galvanization standard
Our Services
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 5
Pre-Sales Service
  • Inquiry and consulting support
  • 24-hour response time
  • Factory visits available
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 6
After-Sales Service
  • Installation training
  • Inspection reports and material certificates provided

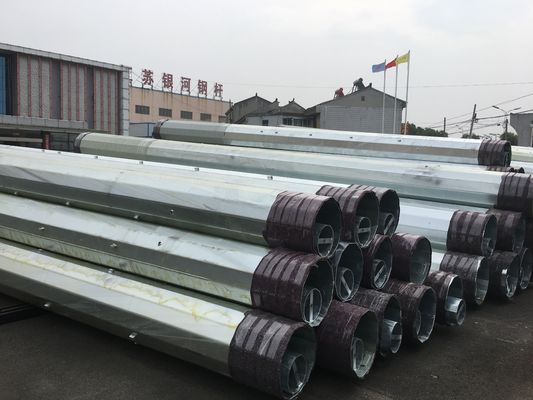

Packaging & Shipping
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 7
Type Quantity
40&45FT Electric poles for Philippine Market 26 Tons/40HQ Containers
35FT Electric poles for Philippine Market 26 Tons/40HQ Containers
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 8
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 9
